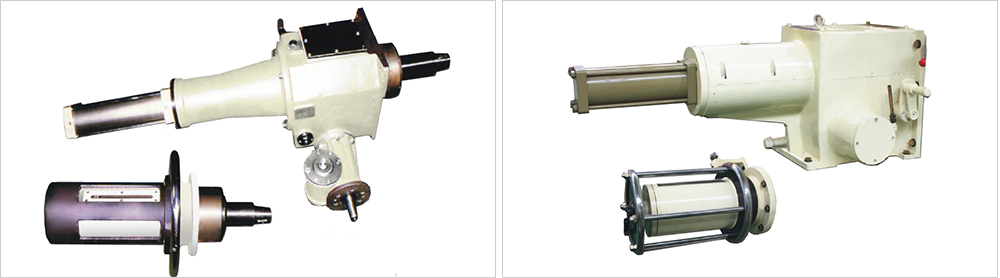

Gear box sets

Gravure printer gear box is characterized by its easy operation at high and low speed. Especially, by using air cylinder, it saves the time for copper plate roll replacement. Also, it has outstanding out of roundness and straightness thanks to the precise gear ratio (2:1 or 3:1).

LINE SPEED(R.P.M)
Specifications MIN(Minimum) MAX(Maximum)
Width : WEB WIDE Standards 680
Length : STROKE 78 275
